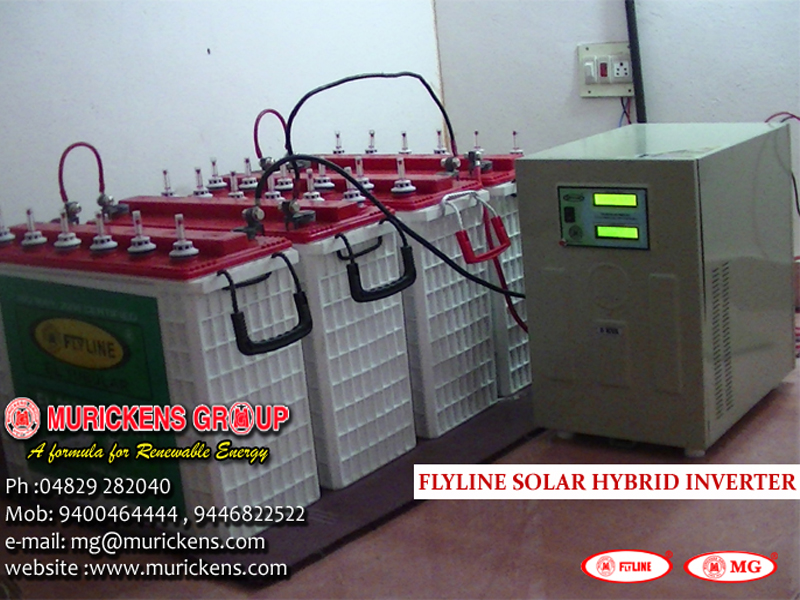

FLYLINE SOLAR SINEWAVE PCU (HYBRID)

Let us Go Green, Let us Win Together.

Our Nation is depending upon Hydroelectric power, Thermal power, Natural Gas and Neculiar power etc to get AC power which is costlier. So for using Solar Power Murickens Group developed an instrument with advanced technology, known as Solar Sine wave Inverter (all in one or hybrid solar inverter) . It is an essential equipment for solving power cut problems. This unit is only the source of getting AC Power wherever there is no electric power, and getting sufficient solar power. It is useful for working of Household Electrical and Electronic equipments as well as wherever we need uninterrupted flow of power. The main advantage is no need of extra wiring . Can work through Solar Power as well as AC power according to our discretion. The products are integrated with controllers, also are applicable for wind/solar hybrid power systems. There is an option to avoid initial investment cost; we can connect Solar panel at any time in future. If we connect with Electricity power and solar power first working preference is solar power and if there is no sufficient solar power it will go to electric power automatically.We can see all the functional activities through LCD Meter Display built in it.

It is convenient to use in house, office, even desert area to connect and work the load like Lights ,Fan, TV, Fridge, Water pump , Air-conditioner , washing machine etc... For installation of this unit there is no need of any kind of permission from government and other statutory authorities. We have already installed thousands of fully automatic lower and higher solar power plants all over Kerala for the last 15 years. Before planning the installation you must get an experienced technical advice to get trouble free function and avoid unnecessary expenses. All our solar products we arrange MNRE ( ministry of natural renewable energy ) government subsidies through ANERT. Our satisfied clients include prestigious institutions like Karipoor international air port, 7th battalion military camp, ISRO Sreeharikotta, Marine fisheries dept of India,etc





SINE WAVE SOLAR UPS CUM INVERTER(Hybrid) Features :
  • Flyline pure sine wave solar system is a solar charged automatic inverter that can be used for lighting up a house as well as powering computers and other electronic equipments that need uninterrupted power supply.
  • Separate mains on off charger switch.
  • Works with the power of solar power/AC power(KSEB line) , the best way to save money and nation by using natural resource.
  • Provision for connecting KSEB current and solar power.
  • Attractive Designs.
  • Pollution free type.
  • Single Switch Operation.
  • DSP based very low component cost design.
  • Single sided PCB, easy to assemble without any SMD components.
  • Auto resetting.
  • Protection from lightening, High/Low Voltage Trip.
  • Over Load Protection.
  • Over Charge and Deep Discharge cut off.
  • Independent Digital display for Solar or KSEB charging voltage, main voltage, inverter voltage, load etc.
  • Audio and Visual Indicators.
  • can be connected to the existing wiring.
  • Bridge type center aligned switching MOSFET based topology.
  • No husking sound.
  • It is a fully automatic built-in charging control system, no need of any manpower.
  • The Special feature of the system is, when the battery is full and there is sufficient sunlight the system will automatically cut the main line off (KSEB Line) and connect the solar system. This feature is applicable only if you use the recommended capacity of solar panel and solar inverter.
  • The main advantage of our built in solar charger is floating type and once it fully charges the battery, it gone to trickle charging. This will provide more battery life and can utilize 100 % efficiency of solar panel power.
  • The first preference is for solar charging and when the battery is low and there is no sufficient sunlight, there is an option for manual or automatic grid charging through separate switch.
  • ISO: 9001 -2015 Certified
FLYLINE HYBRID SOLAR PCU WORKING MECHANISM :

System priority Stage : - solar-battery-grid

  • When solar energy is sufficient total out put load will operate on solar Inverter. Excess solar power will charge batteries.
  • When solar energy is weak then inverter will take DC source from batteries to compensate the out put load.
  • When the battery discharge level reaches 11.2 volt or below, the out put load is shifted to grid and the battries are charged with the help of solar power only.
  • At Day time when each battery becomes 13.5 v the output load again shift to solar Inverter.
  • In 48 and above DC volt system of solar inverter - At night or when there is no sunlight the batteries reach 70% discharge level (30 % kept as a buffer) the out put load is shifted to grid without any change over time. (Each battery discharging level become 1.5 v)
  • In 12 and 24 volt DC system of solar inverter - At night or when there is no sunlight, the out put load is shifted to grid and the battery back-up is used only when there is a grid failure.
  • After shifting the load to grid there is an optional on –off switch ( manual ) to charge the battery from grid up to 13.5 volt .
  • At night During changeover of load from battery backup to grid supply (i.e 70 % battery discharged) and if grid supply is absent then load is shifted to solar inverter to use buffer battery backup (i.e balance 30 %)
  • By using solar power the solar charger high cut-off is 14.5 V of each battery.
SL.No. Parameter Single Phase Unit
1 Rating 650 VA to 5 000 VA
2 Input Voltage Range 180V - 270 AC or Solar Power 12, 24, 36, 48V
3 Normal Output Voltage 230V AC
4 Output Frequency 50 Hz ± 1 %
5 Input Frequency 45 - 55
6 Power Factor -0.8 Lagging to unit
7 Efficiency 95%
8 Control Digital/Analogue
9 Winding Copper Wires
10 Wave Form Pure Sine Wave
11 Mounting Free
12 Compact in size, Can work on Generators
13 Charging AC or Solar Power
14 Noise Low Noise <50db
15 Battery 12, 24 or 48 V
16 Heat Above 50 Degree
